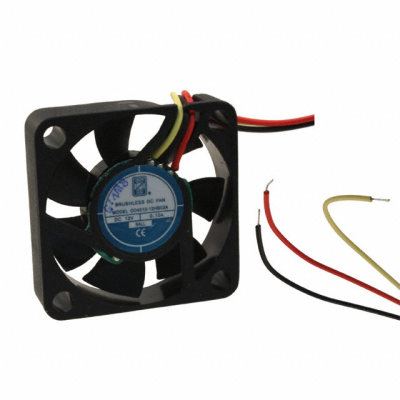

OD4010-12HB02A
| Manufacturer: | Orion Fans |
In Stock 18 pcs
|
|
|---|---|---|---|
| Datasheet: | OD4010-12HB02A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 40X10.5MM 12VDC WIRE | $13.31 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6000 RPM
- Noise
- 25.0 dB
- Width
- 10.50mm
- Series
- OD4010
- Weight
- -
- Air Flow
- 7.0 CFM (0.196m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 7 ~ 14VDC
- Static Pressure
- 0.100 in H2O (24.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 60000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.090A
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
