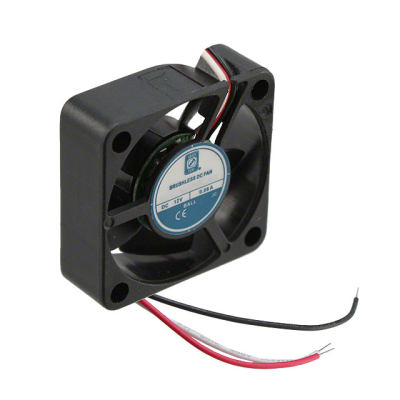

OD3010-05HB01A
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD3010-05HB01A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 30X10.2MM 5VDC WIRE | $9.7 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 11000 RPM
- Noise
- 32.0 dB
- Width
- 10.20mm
- Series
- OD3010
- Weight
- -
- Air Flow
- 5.0 CFM (0.140m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 3.5 ~ 5VDC
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- 60000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 30mm L x 30mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.200A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
