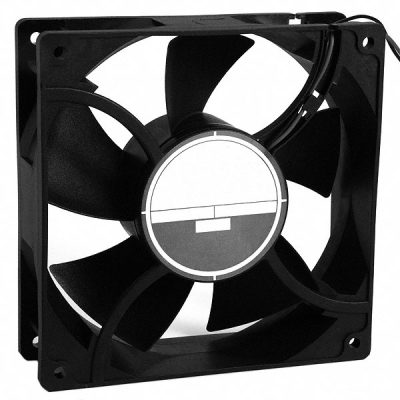

OD127-48MB5
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD127-48MB5 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 127X38.5MM 48VDC WIRE | $24.16 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2950 RPM
- Noise
- 53.0 dB
- Width
- 38.50mm
- Series
- OD127
- Weight
- -
- Air Flow
- 161.0 CFM (4.51m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 22 ~ 55VDC
- Static Pressure
- 0.350 in H2O (87.2 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 60000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 127mm L x 127mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.230A
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
