Lanka Micro

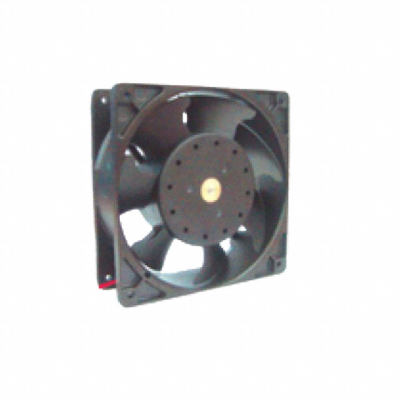

OD1238AP-12LTB
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD1238AP-12LTB | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119.5X38.5MM 12VDC | $16.91 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1950 RPM
- Noise
- 25.0 dB(A)
- Width
- 38.50mm
- Series
- OD1238AP
- Weight
- -
- Air Flow
- 70.0 CFM (1.96m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 2.40W
- Voltage Range
- -
- Static Pressure
- 0.250 in H2O (62.3 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 65000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 119.5mm L x 119.5mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.200A
- Operating Temperature
- 5 ~ 149°F (-15 ~ 65°C)
