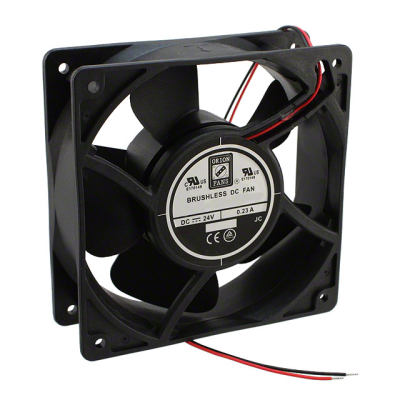

OD1238-24MSS
| Manufacturer: | Orion Fans |
In Stock 5 pcs
|
|
|---|---|---|---|
| Datasheet: | OD1238-24MSS | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X38.5MM 24VDC WIRE | $12.2 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2540 RPM
- Noise
- 47.0 dB
- Width
- 38.50mm
- Series
- OD1238
- Weight
- -
- Air Flow
- 96.0 CFM (2.69m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sealed Sleeve
- Power (Watts)
- 4.80W
- Voltage Range
- -
- Static Pressure
- 0.230 in H2O (57.3 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 65000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.230A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
