Lanka Micro

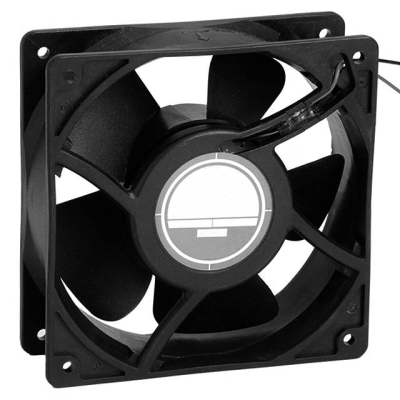

OD1238-12LSS
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OD1238-12LSS | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X38.5MM 12VDC WIRE | $8.89 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1950 RPM
- Noise
- 33.0 dB
- Width
- 38.50mm
- Series
- OD1238
- Weight
- -
- Air Flow
- 73.0 CFM (2.04m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sealed Sleeve
- Power (Watts)
- 3.00W
- Voltage Range
- -
- Static Pressure
- 0.130 in H2O (32.4 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 65000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.240A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
