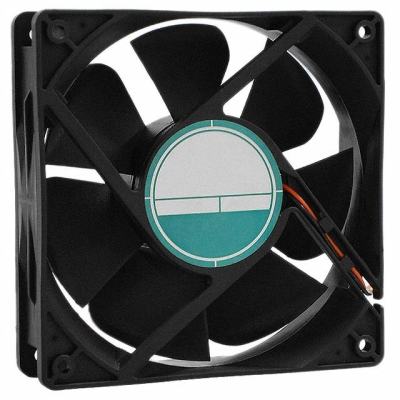

OD1232-48MB02A
| Manufacturer: | Orion Fans |
In Stock 53 pcs
|
|
|---|---|---|---|
| Datasheet: | OD1232-48MB02A | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X32MM 48VDC WIRE | $26.14 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3300 RPM
- Noise
- 48.0 dB
- Width
- 32.00mm
- Series
- OD1232
- Weight
- -
- Air Flow
- 107.0 CFM (3.00m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, cURus
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 24 ~ 55.2VDC
- Static Pressure
- 0.330 in H2O (82.2 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.150A
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
