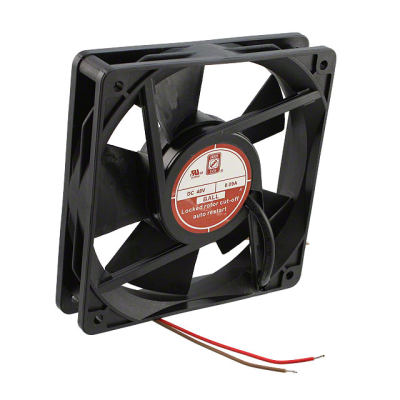

OD1225-48HB
| Manufacturer: | Orion Fans |
In Stock 39 pcs
|
|
|---|---|---|---|
| Datasheet: | OD1225-48HB | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X25MM 48VDC WIRE | $21.73 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Noise
- 42.0 dB
- Width
- 25.00mm
- Series
- OD1225
- Weight
- -
- Air Flow
- 86.0 CFM (2.41m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 5.00W
- Voltage Range
- 18 ~ 53VDC
- Static Pressure
- 0.240 in H2O (59.8 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 65000 Hrs @ 45°C
- Material - Blade
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.100A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
