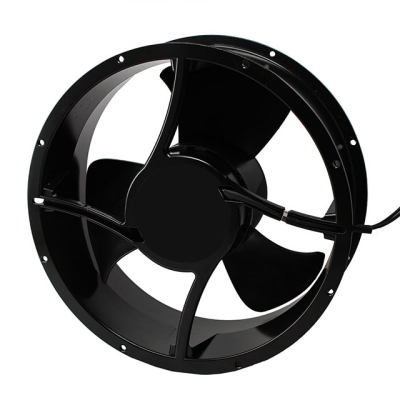

OA254EC-UR-1WBIP68A
| Manufacturer: | Orion Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OA254EC-UR-1WBIP68A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 254X89MM 95-264VAC IP68/ATEX | $143.55 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1700 RPM
- Noise
- 56.0 dB(A)
- Width
- 89.00mm
- Series
- OA254EC
- Weight
- 4.6 lbs (2.1 kg)
- Air Flow
- 500.0 CFM (14.00m³/min)
- Fan Type
- Tubeaxial
- Features
- Electronic Commutation (EC)
- Approvals
- CE, cURus, UR, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 22.00W
- Voltage Range
- -
- Static Pressure
- 0.480 in H2O (119.6 Pa)
- Voltage - Rated
- 95 ~ 264VAC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 254mm Dia
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- 0.210A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
