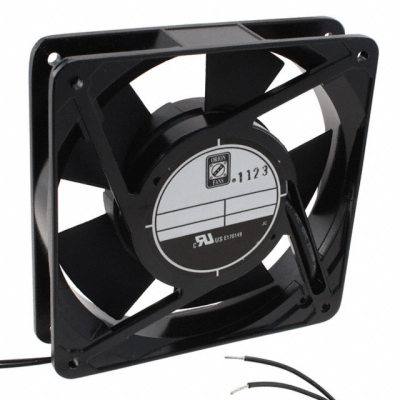

OA125AP-11-1WB
| Manufacturer: | Orion Fans |
In Stock 392 pcs
|
|
|---|---|---|---|
| Datasheet: | OA125AP-11-1WB | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119.5X26.2MM 115VAC | $17.74 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2900 RPM
- Noise
- 33.0 dB
- Width
- 25.00mm
- Series
- OA125
- Weight
- -
- Air Flow
- 81.0 CFM (2.27m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 13.00W
- Voltage Range
- 80 ~ 130VAC
- Static Pressure
- 0.230 in H2O (57.3 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 120.1mm L x 120.1mm H
- Ingress Protection
- -
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
