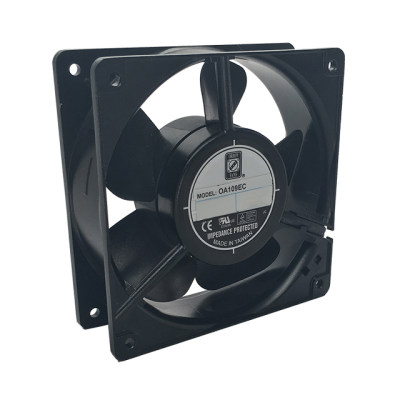

OA109EC-UR-1TBIP68A
| Manufacturer: | Orion Fans |
In Stock 1 pcs
|
|
|---|---|---|---|
| Datasheet: | OA109EC-UR-1TBIP68A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 120X38MM 90-265VAC IP68 ATEX | $53.36 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3200 RPM
- Noise
- 43.0 dB(A)
- Width
- 38.00mm
- Series
- OA109EC
- Weight
- 0.64 lb (290.3 g)
- Air Flow
- 106.0 CFM (2.97m³/min)
- Fan Type
- Tubeaxial
- Features
- Dual Voltage, Electronic Commutation (EC), Thermal Overload Protector (TOP)
- Approvals
- ATEX, CE, cURus, UR
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 4.90W, 5.20W
- Voltage Range
- 90 ~ 265VAC
- Static Pressure
- 0.340 in H2O (84.7 Pa)
- Voltage - Rated
- 115/230VAC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- 0.060A/0.080A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
