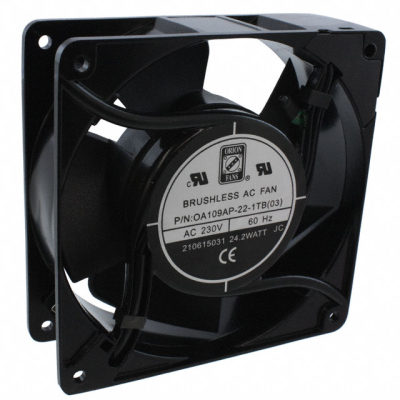

OA109AP-22-1TB03
| Manufacturer: | Orion Fans |
In Stock 15 pcs
|
|
|---|---|---|---|
| Datasheet: | OA109AP-22-1TB03 | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119.5X38.5MM 230VAC | $26.24 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Noise
- 42.0 dB
- Width
- 38.50mm
- Series
- OA109
- Weight
- -
- Air Flow
- 110.0 CFM (3.08m³/min)
- Fan Type
- Tubeaxial
- Features
- Temperature Sensor
- Approvals
- cURus
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 15.00W
- Voltage Range
- 160 ~ 260VAC
- Static Pressure
- 0.280 in H2O (69.7 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 119.5mm L x 119.5mm H
- Ingress Protection
- -
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 176°F (-20 ~ 80°C)
