OSTTF031161
| Manufacturer: | On-Shore Technology, Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | OSTTF031161 | ||
| Product Category: | Terminal Blocks - Wire to Board | Reference Price (In US Dollars) | 1pcs |

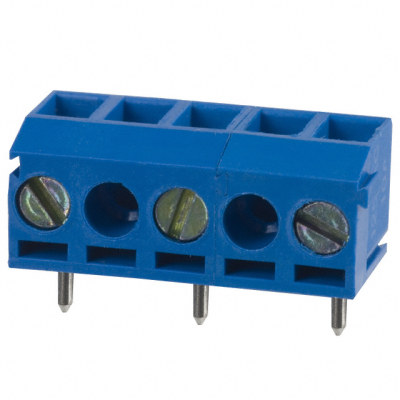

| Description: | TERM BLK 3POS TOP ENTRY 7MM PCB | $0.56 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- -
- Pitch
- 0.276" (7.00mm)
- Series
- OSTTF
- Current
- 10A
- Voltage
- 125V
- Features
- Interlocking (Side)
- Packaging
- Bulk
- Wire Gauge
- 16-26 AWG
- Part Status
- Active
- Screw Thread
- M2
- Mounting Type
- Through Hole
- Torque - Screw
- 0.2 Nm (1.7 Lb-In)
- Number of Levels
- 1
- Wire Termination
- Screw
- Mating Orientation
- Vertical with Board
- Dielectric Material
- Polyamide (PA), Nylon
- Positions Per Level
- 3
- Operating Temperature
- -33°C ~ 120°C
- Clamp Material - Plating
- Steel, Stainless
- Screw Material - Plating
- Steel, Galvanized - Chromate Plated
- Contact Material - Plating
- Brass
