Lanka Micro

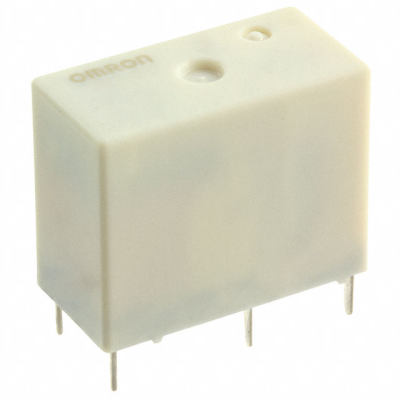

G5Q-1A-EL-HA-VH DC12
| Manufacturer: | Omron Electronics Inc-EMC Div |
In Stock 594 pcs
|
|
|---|---|---|---|
| Datasheet: | G5Q-1A-EL-HA-VH DC12 | ||
| Product Category: | Power Relays, Over 2 Amps | Reference Price (In US Dollars) | 1pcs |
| Description: | RELAY GEN PURPOSE SPST 10A 12V | $1.49 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- G5Q-EL
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Tube
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Flux Protection
- Coil Current
- 33.3mA
- Coil Voltage
- 12VDC
- Contact Form
- SPST-NO (1 Form A)
- Operate Time
- 10ms
- Release Time
- 5ms
- Mounting Type
- Through Hole
- Coil Insulation
- -
- Coil Resistance
- 360 Ohms
- Contact Material
- Silver Alloy, Cadmium Free
- Switching Voltage
- 277VAC - Max
- Termination Style
- PC Pin
- Must Operate Voltage
- 9 VDC
- Must Release Voltage
- 0.6 VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Rating (Current)
- 10A
