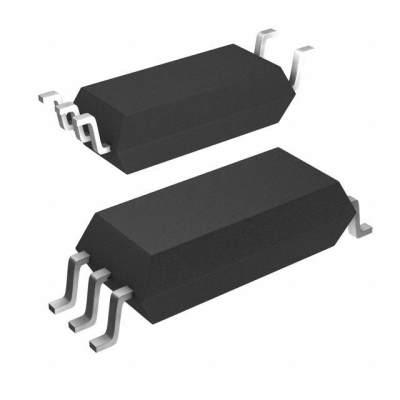

FOD8384R2V
| Manufacturer: | ON Semiconductor |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FOD8384R2V | ||
| Product Category: | Isolators - Gate Drivers | Reference Price (In US Dollars) | 1pcs |
| Description: | OPTOISO 5KV 1CH GATE DRIVER 5SOP | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Approvals
- IEC/EN/DIN, UL
- Packaging
- Digi-Reel®
- Technology
- Optical Coupling
- Part Status
- Discontinued at Digi-Key
- Mounting Type
- Surface Mount
- Package / Case
- 6-SOIC (0.346", 8.80mm Width), 5 Leads
- Number of Channels
- 1
- Voltage - Isolation
- 5000Vrms
- Current - Peak Output
- 3A
- Operating Temperature
- -40°C ~ 100°C
- Rise / Fall Time (Typ)
- 35ns, 25ns
- Supplier Device Package
- 5-SOP
- Voltage - Output Supply
- 15V ~ 30V
- Current - Output High, Low
- 2.5A, 2.5A
- Pulse Width Distortion (Max)
- 65ns
- Voltage - Forward (Vf) (Typ)
- 1.43V
- Current - DC Forward (If) (Max)
- 25mA
- Propagation Delay tpLH / tpHL (Max)
- 210ns, 210ns
- Common Mode Transient Immunity (Min)
- 35kV/µs
