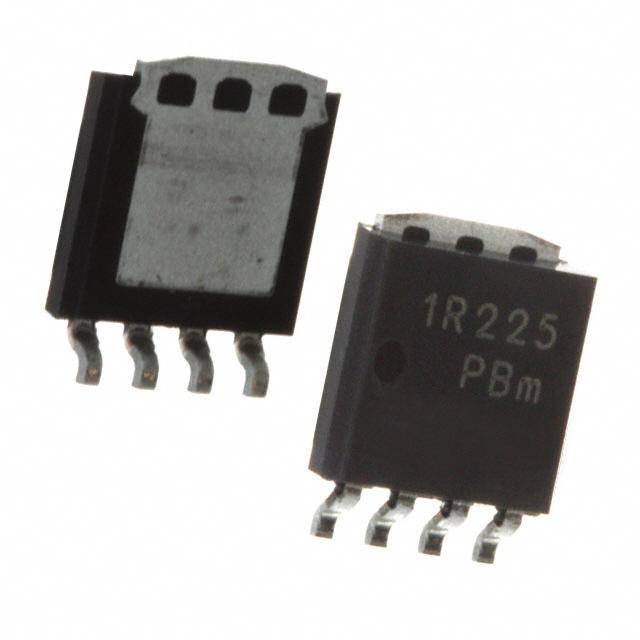

PSMN0R9-30YLDX
| Manufacturer: | Nexperia USA Inc. |
In Stock 16446 pcs
|
|
|---|---|---|---|
| Datasheet: | PSMN0R9-30YLDX | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET N-CH 30V 300A 56LFPAK | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- FET Type
- N-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- SOT-1023, 4-LFPAK
- Vgs(th) (Max) @ Id
- 2.2V @ 1mA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 0.87mOhm @ 25A, 10V
- Power Dissipation (Max)
- 291W
- Supplier Device Package
- LFPAK56, Power-SO8
- Gate Charge (Qg) (Max) @ Vgs
- 109nC @ 10V
- Drain to Source Voltage (Vdss)
- 30V
- Input Capacitance (Ciss) (Max) @ Vds
- 7668pF @ 15V
- Current - Continuous Drain (Id) @ 25°C
- 300A
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
