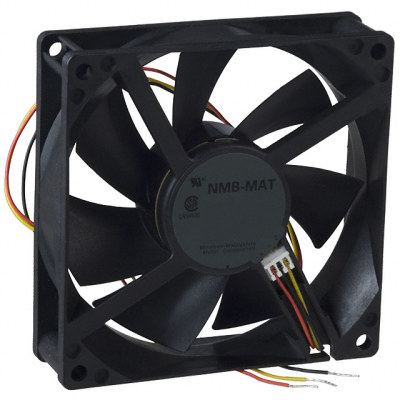

FBA09A12U1BO
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FBA09A12U1BO | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X25.5MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3450 RPM
- Noise
- 43.0 dB
- Width
- 25.50mm
- Series
- FBA
- Weight
- 0.243 lb (110.22 g)
- Air Flow
- 68.8 CFM (1.93m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CSA, UL
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Hydro-wave (HWB)
- Power (Watts)
- 5.16W
- Voltage Range
- 7 ~ 13.8VDC
- Static Pressure
- 0.197 in H2O (49.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.430A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
