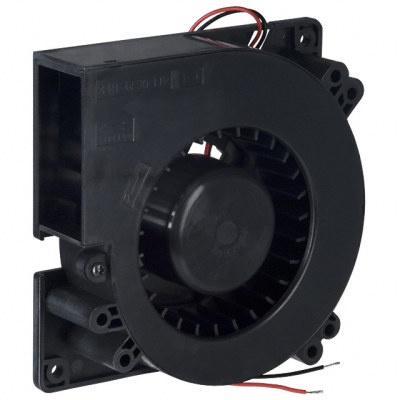

BG1203-B055-000-00
| Manufacturer: | NMB Technologies Corporation |
In Stock 25 pcs
|
|
|---|---|---|---|
| Datasheet: | BG1203-B055-000-00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 120X32MM 24VDC WIRE | $19 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2650 RPM
- Noise
- 55.0 dB
- Width
- 32.00mm
- Series
- 12032GA
- Weight
- 0.595 lb (269.89 g)
- Air Flow
- 33.2 CFM (0.930m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 11.50W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 1.044 in H2O (260.0 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square/Rounded - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.480A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
