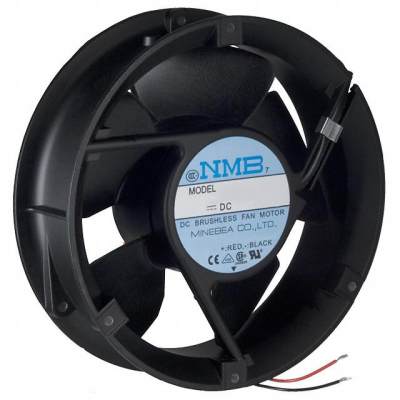

6820PL-04W-B40-D00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 6820PL-04W-B40-D00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X50.8MM 12VDC WIRE | $59.92 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3350 RPM
- Noise
- 58.0 dB
- Width
- 50.80mm
- Series
- 6820PL
- Weight
- 1.8 lbs (816.5 g)
- Air Flow
- 240.0 CFM (6.72m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 17.30W
- Voltage Range
- 6 ~ 18VDC
- Static Pressure
- 0.622 in H2O (155.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 172mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 1.44A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
