Lanka Micro

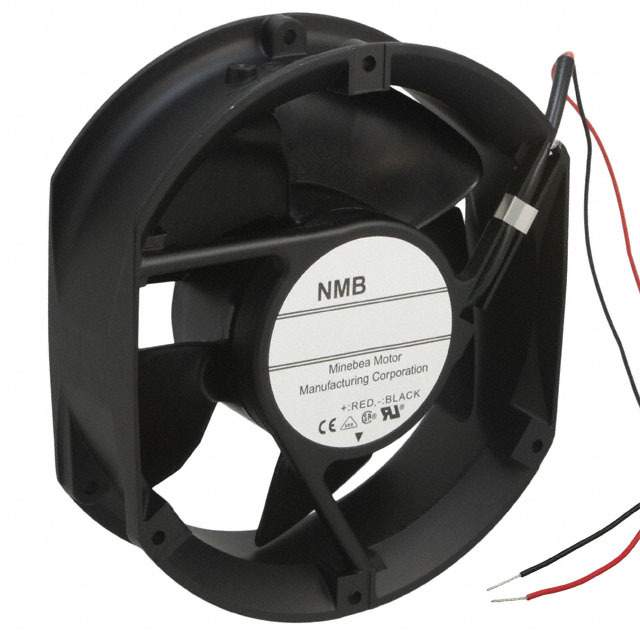

5920PL-05W-B10-D00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 5920PL-05W-B10-D00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X50.8MM 24VDC WIRE | $50.56 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2550 RPM
- Noise
- 50.0 dB
- Width
- 50.80mm
- Series
- 5920PL
- Weight
- 1.8 lbs (816.5 g)
- Air Flow
- 180.0 CFM (5.04m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 8.64W
- Voltage Range
- 12 ~ 30VDC
- Static Pressure
- 0.371 in H2O (92.5 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.360A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
