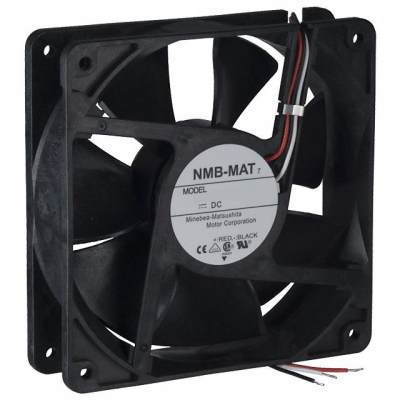

4712KL-04W-B59-P00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 4712KL-04W-B59-P00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119X32MM 12VDC WIRE | $14.34 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3300 RPM
- Noise
- 50.5 dB
- Width
- 32.00mm
- Series
- 4712KL
- Weight
- 0.529 lb (239.95 g)
- Air Flow
- 120.0 CFM (3.36m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 10.20W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.373 in H2O (93.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.850A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
