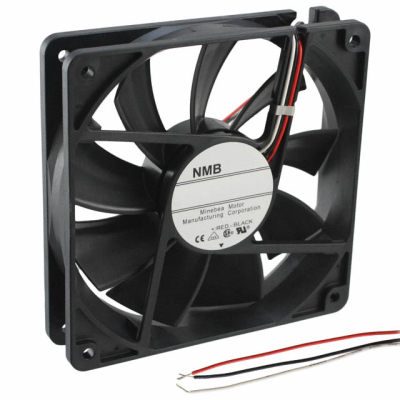

4710KL-05W-B59-B50
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 4710KL-05W-B59-B50 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119X25.5MM 24VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2800 RPM
- Noise
- 41.5 dB
- Width
- 25.50mm
- Series
- 4710KL
- Weight
- 0.397 lb (180.08 g)
- Air Flow
- 114.7 CFM (3.21m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.96W
- Voltage Range
- 10 ~ 26VDC
- Static Pressure
- 0.203 in H2O (50.6 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.290A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
