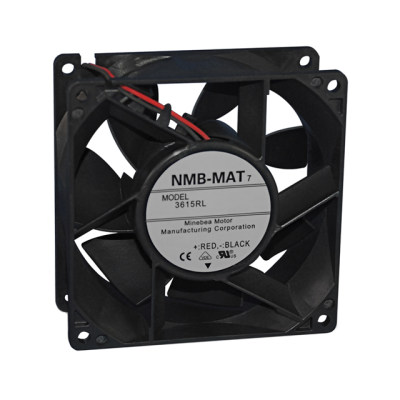

3615RL-05W-B49-E50
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 3615RL-05W-B49-E50 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X38.4MM 24VDC WIRE | $17.41 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5700 RPM
- Noise
- 56.5 dB(A)
- Width
- 38.40mm
- Series
- 3615RL
- Weight
- 0.507 lb (229.97 g)
- Air Flow
- 118.6 CFM (3.32m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CE, UL, VDE
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 13.40W
- Voltage Range
- 14 ~ 27.6VDC
- Static Pressure
- 0.751 in H2O (187.0 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.560A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
