3610SB-05W-B59-E50
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 3610SB-05W-B59-E50 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

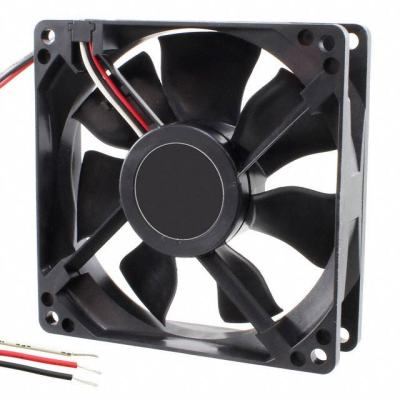

| Description: | FAN AXIAL 92X25MM 24VDC WIRE | $7.62 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3100 RPM
- Noise
- 35.0 dB
- Width
- 25.00mm
- Series
- 09225SA
- Weight
- 0.209 lb (94.8 g)
- Air Flow
- 54.4 CFM (1.52m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CE, UL, VDE
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.80W
- Voltage Range
- 12 ~ 27.6VDC
- Static Pressure
- 0.190 in H2O (47.3 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.080A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
