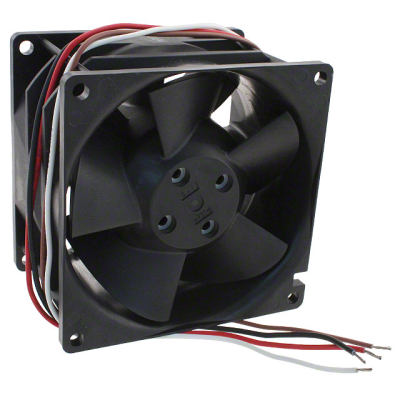

3122FT-D4W-B56-E50
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 3122FT-D4W-B56-E50 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X56MM 12VDC WIRE | $38.95 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 13500 RPM
- Noise
- 65.5 dB
- Width
- 56.00mm
- Series
- 3122FT
- Weight
- 0.485 lb (219.99 g)
- Air Flow
- 138.0 CFM (3.86m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 46.80W
- Voltage Range
- 10.8 ~ 13.2VDC
- Static Pressure
- 3.630 in H2O (905.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 3.9A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
