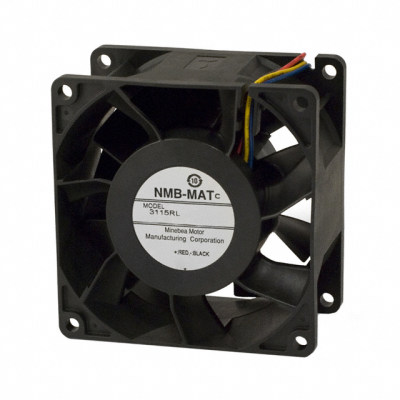

3115RL-04W-B99-E50
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 3115RL-04W-B99-E50 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X38MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 8600 RPM
- Noise
- 62.5 dB(A)
- Width
- 38.00mm
- Series
- 3115RL
- Weight
- 0.452 lb (205.02 g)
- Air Flow
- 123.6 CFM (3.46m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 32.40W
- Voltage Range
- 7 ~ 12.6VDC
- Static Pressure
- 1.887 in H2O (470.1 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 2.7A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
