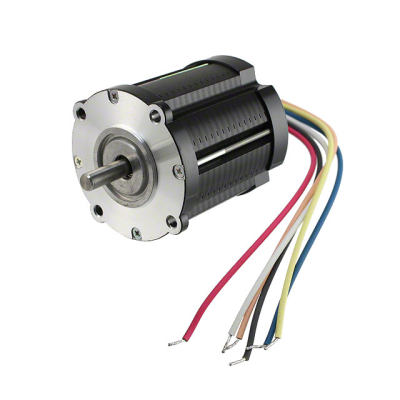

29SM-K711-00V
| Manufacturer: | NMB Technologies Corporation |
In Stock 14 pcs
|
|
|---|---|---|---|
| Datasheet: | 29SM-K711-00V | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEP MOTOR HYBRID UNIPOLAR 24V | $103.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Hybrid
- Series
- 29SM
- Weight
- 3.1 lbs (1.4 kg)
- Accuracy
- ±5%
- Features
- Round Shaft
- Approvals
- -
- Coil Type
- Unipolar
- Step Angle
- 1.8°
- Part Status
- Active
- Rotor Inertia
- 660gcm²
- Coil Resistance
- 1 Ohms
- Voltage - Rated
- 24VDC
- Diameter - Shaft
- 0.315" (8.00mm)
- Size / Dimension
- Round - 2.795" Dia (71.00mm)
- Termination Style
- Wire Leads
- Steps per Revolution
- 200
- Current Rating (Amps)
- 3A
- Mounting Hole Spacing
- 1.856" (47.14mm)
- Operating Temperature
- -10°C ~ 50°C
- Length - Shaft and Bearing
- 0.984" (25.00mm)
- Torque - Holding (oz-in / mNm)
- 205.36 / 1450
