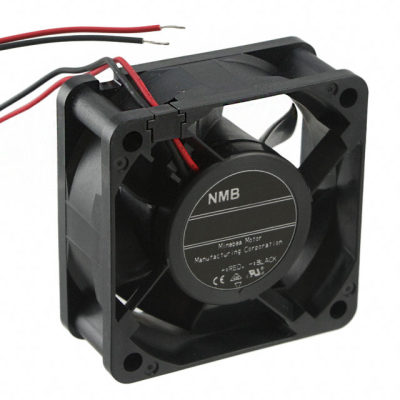

2410SB-04W-B50-B00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 2410SB-04W-B50-B00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X25MM 12VDC WIRE | $7.01 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4700 RPM
- Noise
- 32.0 dB(A)
- Width
- 25.00mm
- Series
- 06025SA
- Weight
- 0.123 lb (55.79 g)
- Air Flow
- 23.3 CFM (0.652m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.80W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 0.253 in H2O (63.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.150A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
