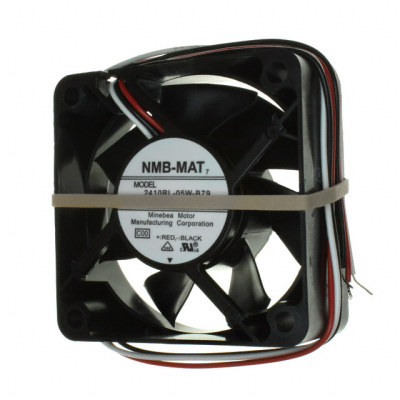

2410RL-05W-B79-C00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 2410RL-05W-B79-C00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X25MM 24VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5300 RPM
- Noise
- 38.0 dB
- Width
- 25.00mm
- Series
- 2410RL
- Weight
- 0.143 lb (64.86 g)
- Air Flow
- 28.5 CFM (0.798m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, UL, VDE
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.40W
- Voltage Range
- 10 ~ 27.6VDC
- Static Pressure
- 0.277 in H2O (69.1 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 40000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.100A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
