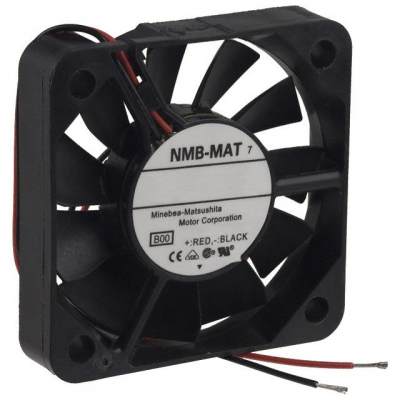

2004KL-01W-B50-B00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 2004KL-01W-B50-B00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 50X10MM BALL 5VDC WIRE | $10.47 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5500 RPM
- Noise
- 34.0 dB
- Width
- 10.00mm
- Series
- 2004KL
- Weight
- 0.044 lb (19.96 g)
- Air Flow
- 10.2 CFM (0.286m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.50W
- Voltage Range
- 4.5 ~ 6VDC
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- 60000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 50mm L x 50mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.300A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
