1608KL-04W-B49-L00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 1608KL-04W-B49-L00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

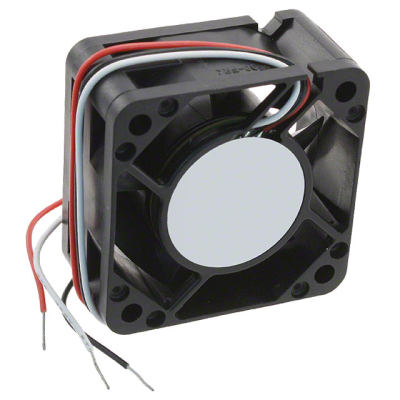

| Description: | FAN AXIAL 40X20MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7500 RPM
- Noise
- 29.0 dB
- Width
- 20.00mm
- Series
- 1608KL
- Weight
- 0.055 lb (24.95 g)
- Air Flow
- 8.4 CFM (0.235m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.08W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 0.217 in H2O (54.1 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.090A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
