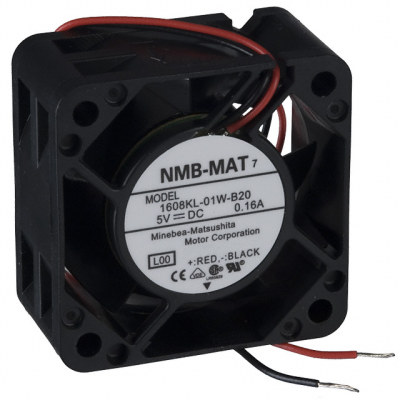

1608KL-01W-B20-L00
| Manufacturer: | NMB Technologies Corporation |
In Stock 77 pcs
|
|
|---|---|---|---|
| Datasheet: | 1608KL-01W-B20-L00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 40X20MM BALL 5VDC WIRE | $9.99 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5500 RPM
- Noise
- 22.5 dB
- Width
- 20.00mm
- Series
- 1608KL
- Weight
- 0.055 lb (24.95 g)
- Air Flow
- 6.0 CFM (0.168m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 600mW
- Voltage Range
- 4.5 ~ 5.5VDC
- Static Pressure
- 0.121 in H2O (30.1 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- 50000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.120A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
