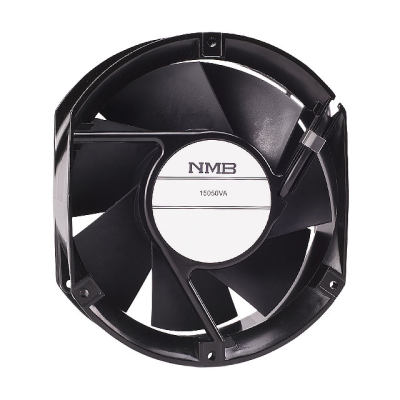

15050VA-24R-GA-00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 15050VA-24R-GA-00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 150X50MM 24VDC IP69K | $59.92 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4600 RPM
- Noise
- 68.0 dB(A)
- Width
- 50.80mm
- Series
- 15050VA
- Weight
- 1.9 lbs (861.8 g)
- Air Flow
- 346.1 CFM (9.69m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- -
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 43.20W
- Voltage Range
- 18 ~ 26.4VDC
- Static Pressure
- 1.250 in H2O (312.0 Pa)
- Voltage - Rated
- 24VDC
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172.7mm L x 150mm H
- Ingress Protection
- IP69K - Dust Tight, High Temp Water Jets, Waterproof
- Current Rating (Amps)
- 1.8A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
