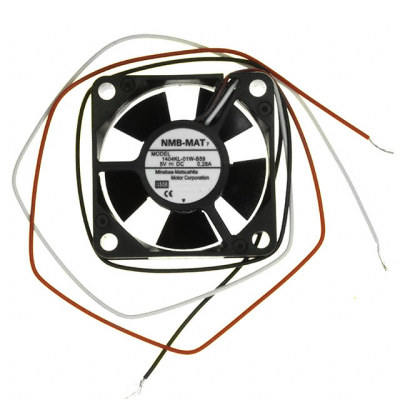

1404KL-01W-B59-B50
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 1404KL-01W-B59-B50 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 35X10MM BALL 5VDC WIRE | $9.43 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 9000 RPM
- Noise
- 27.0 dB
- Width
- 10.00mm
- Series
- 1404KL
- Weight
- 0.026 lb (11.79 g)
- Air Flow
- 5.6 CFM (0.157m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.05W
- Voltage Range
- 4.5 ~ 5.5VDC
- Static Pressure
- 0.165 in H2O (41.1 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 35mm L x 35mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.210A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
