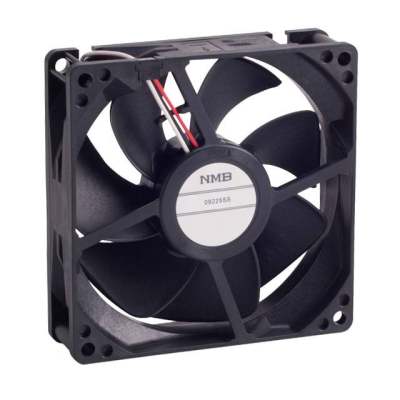

09225SS-12Q-AT-D0
| Manufacturer: | NMB Technologies Corporation |
In Stock 15 pcs
|
|
|---|---|---|---|
| Datasheet: | 09225SS-12Q-AT-D0 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X25MM 12VDC WIRE | $6.82 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3900 RPM
- Noise
- 40.0 dB
- Width
- 25.00mm
- Series
- 09225SS
- Air Flow
- 65.0 CFM (1.82m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- -
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sleeve
- Power (Watts)
- 3.36W
- Voltage Range
- 7 ~ 13.8VDC
- Static Pressure
- 0.290 in H2O (72.2 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.280A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
