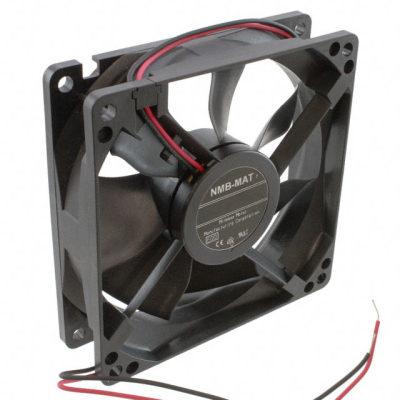

09225SA-24M-EA-00
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 09225SA-24M-EA-00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X25MM 24VDC WIRE | $7.01 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2750 RPM
- Noise
- 32.0 dB
- Width
- 25.00mm
- Series
- 09225SA
- Weight
- 0.209 lb (94.8 g)
- Air Flow
- 48.4 CFM (1.35m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, UR, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.56W
- Voltage Range
- 12 ~ 27.6VDC
- Static Pressure
- 0.154 in H2O (38.4 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 25°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.070A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
