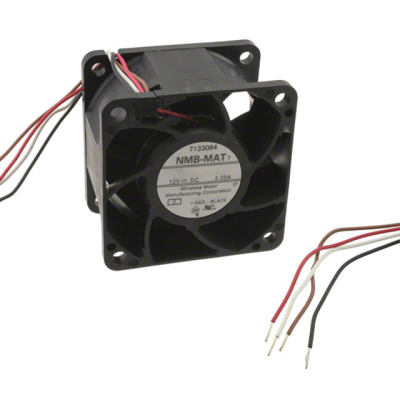

06038DA-12S-EU-D0
| Manufacturer: | NMB Technologies Corporation |
In Stock 463 pcs
|
|
|---|---|---|---|
| Datasheet: | 06038DA-12S-EU-D0 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X38MM 12VDC WIRE | $20.75 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 17000 RPM
- Noise
- 63.5 dB(A)
- Width
- 38.00mm
- Series
- 06038DA
- Weight
- 0.271 lb (122.92 g)
- Air Flow
- 66.4 CFM (1.86m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- UR, VDE
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 19.80W
- Voltage Range
- 10.8 ~ 13.2VDC
- Static Pressure
- 3.713 in H2O (925.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.65A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
