Lanka Micro

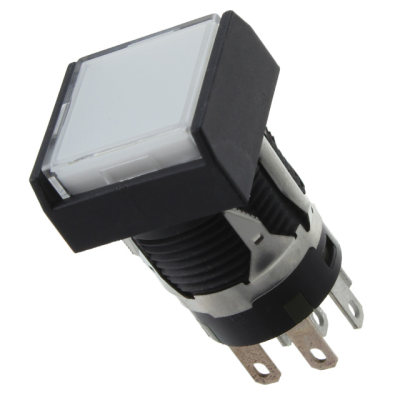

YB26KKW01-2CF12-JB
| Manufacturer: | NKK Switches |
In Stock 54 pcs
|
|
|---|---|---|---|
| Datasheet: | YB26KKW01-2CF12-JB | ||
| Product Category: | Pushbutton Switches | Reference Price (In US Dollars) | 1pcs |
| Description: | SWITCH PUSHBUTTON DPDT 3A 125V | $20.2 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Standard, Illuminated
- Series
- YB
- Circuit
- DPDT
- Features
- Epoxy Sealed Terminals
- Packaging
- Bulk
- Part Status
- Active
- Actuator Type
- Square, Button
- Mounting Type
- Panel Mount, Snap-In
- Electrical Life
- 100,000 Cycles
- Mechanical Life
- 200,000 Cycles
- Switch Function
- On-On
- Termination Style
- Solder, Quick Connect - 0.110" (2.8mm)
- Ingress Protection
- -
- Voltage Rating - AC
- 125V
- Voltage Rating - DC
- 30V
- Color - Actuator/Cap
- Clear (White Filter/Diffuser)
- Current Rating (Amps)
- 3A (AC/DC)
- Operating Temperature
- -25°C ~ 50°C
- Panel Cutout Dimensions
- Circular - 16.00mm Dia
- Illumination Type, Color
- LED, Red/Green
- Illumination Voltage (Nominal)
- 12 VDC
