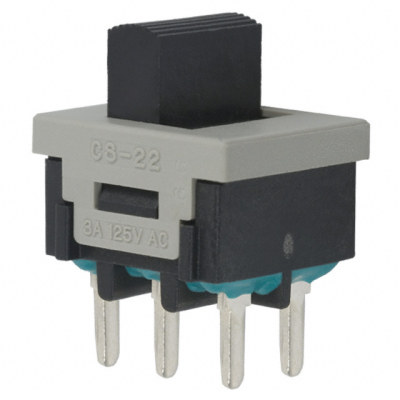

CS22BNW03
| Manufacturer: | NKK Switches |
In Stock 3136 pcs
|
|
|---|---|---|---|
| Datasheet: | CS22BNW03 | ||
| Product Category: | Slide Switches | Reference Price (In US Dollars) | 1pcs |
| Description: | SWITCH SLIDE DPDT 3A 125V | $2.94 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- CS
- Circuit
- DPDT
- Features
- Epoxy Sealed Terminals
- Packaging
- Tray
- Part Status
- Active
- Actuator Type
- Standard
- Mounting Type
- Through Hole
- Switch Travel
- 2.20mm
- Contact Finish
- Silver
- Contact Timing
- Non-Shorting (BBM)
- Actuator Length
- 5.10mm
- Electrical Life
- 20,000 Cycles
- Mechanical Life
- 50,000 Cycles
- Operating Force
- -
- Switch Function
- On-On
- Contact Material
- Copper
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Termination Style
- PC Pin
- Voltage Rating - AC
- 125V
- Current Rating (Amps)
- 3A (AC)
- Operating Temperature
- -30°C ~ 85°C
