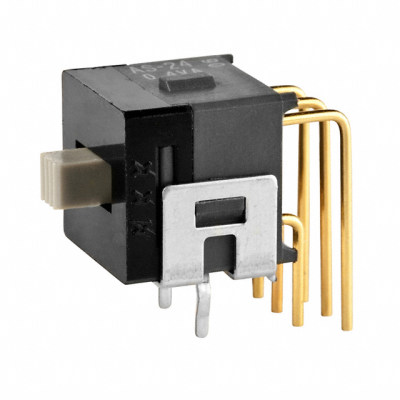

AS24AH
| Manufacturer: | NKK Switches |
In Stock 218 pcs
|
|
|---|---|---|---|
| Datasheet: | AS24AH | ||
| Product Category: | Slide Switches | Reference Price (In US Dollars) | 1pcs |
| Description: | SWITCH SLIDE SP3T 0.4VA 28V | $6.59 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- AS
- Circuit
- SP3T
- Features
- Jumper needed to achieve triple throw
- Packaging
- Tray
- Part Status
- Active
- Actuator Type
- Standard
- Mounting Type
- Through Hole, Right Angle
- Switch Travel
- 2.50mm
- Contact Finish
- Gold
- Contact Timing
- Non-Shorting (BBM)
- Actuator Length
- 2.50mm
- Electrical Life
- 50,000 Cycles
- Mechanical Life
- 50,000 Cycles
- Operating Force
- 260gf
- Switch Function
- On-On-On
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Termination Style
- PC Pin
- Voltage Rating - AC
- 28V
- Voltage Rating - DC
- 28V
- Current Rating (Amps)
- 0.4VA (AC/DC)
- Operating Temperature
- -30°C ~ 85°C
