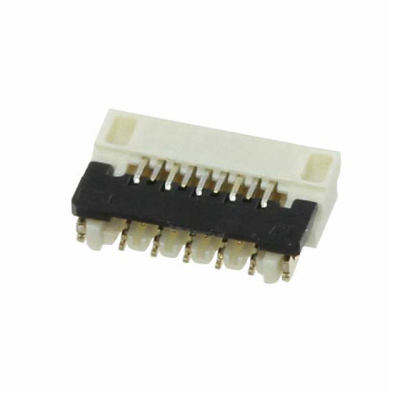

5035660900
| Manufacturer: | Molex |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 5035660900 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FPC BOTTOM 9POS 0.30MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.012" (0.30mm)
- Series
- Easy-On 503566
- Features
- Solder Retention
- Packaging
- Digi-Reel®
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- White
- Mating Cycles
- 10
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Tabbed
- Contact Finish
- Gold
- Flat Flex Type
- FPC
- Voltage Rating
- 50V
- Locking Feature
- Flip Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- FFC, FCB Thickness
- 0.20mm
- Height Above Board
- 0.037" (0.95mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Number of Positions
- 9
- Current Rating (Amps)
- 0.2A
- Operating Temperature
- -40°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-0, UL94 HB
