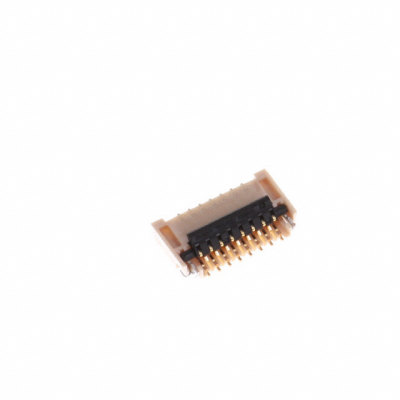

500797-1594
| Manufacturer: | Molex |
In Stock 788 pcs
|
|
|---|---|---|---|
| Datasheet: | 500797-1594 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FPC BOTTOM 15POS 0.30MM R/A | $1.59 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.012" (0.30mm)
- Series
- Easy-On 500797
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Packaging
- Bulk
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- -
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- -
- Cable End Type
- Tapered
- Contact Finish
- Gold
- Flat Flex Type
- FPC
- Voltage Rating
- 50V
- Locking Feature
- Flip Lock
- Contact Material
- Copper Alloy
- Actuator Material
- Polyamide (PA46), Nylon 4/6
- FFC, FCB Thickness
- 0.20mm
- Height Above Board
- 0.041" (1.05mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Number of Positions
- 15
- Current Rating (Amps)
- 0.2A
- Operating Temperature
- -20°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-0
