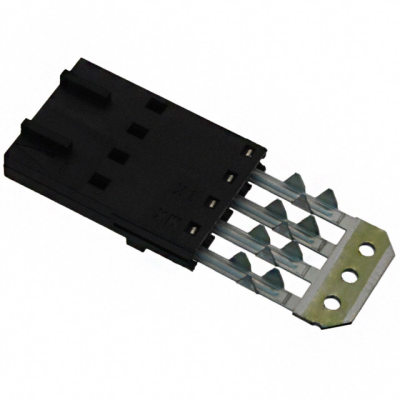

15-47-4043
| Manufacturer: | Molex |
In Stock 1057 pcs
|
|
|---|---|---|---|
| Datasheet: | 15-47-4043 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC CIC RCPT 4POS 2.54MM | $1.42 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.100" (2.54mm)
- Series
- SL 70430
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- IDC
- Housing Color
- Black
- Mating Cycles
- 50
- Mounting Type
- Free Hanging (In-Line)
- Actuator Color
- -
- Cable End Type
- Straight
- Contact Finish
- Gold
- Flat Flex Type
- FFC, CIC
- Voltage Rating
- 250V
- Locking Feature
- Latch Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- -
- FFC, FCB Thickness
- 0.13 ~ 0.28mm, 0.30mm
- Height Above Board
- -
- Dielectric Material
- Polyester, Glass Filled
- Number of Positions
- 4
- Current Rating (Amps)
- -
- Operating Temperature
- -40°C ~ 105°C
- Connector/Contact Type
- Receptacle
- Contact Finish Thickness
- 15.0µin (0.38µm)
- Material Flammability Rating
- UL94 V-0
