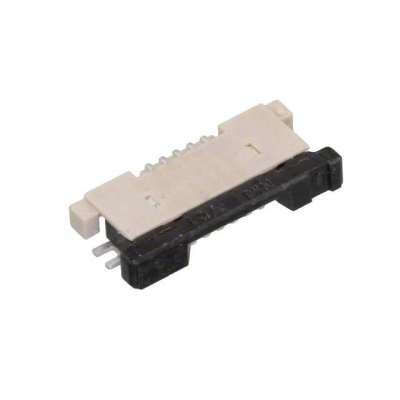

0545480533
| Manufacturer: | Molex |
In Stock 8977 pcs
|
|
|---|---|---|---|
| Datasheet: | 0545480533 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC BOTTOM 5POS 0.5MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- Easy-On 54548
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Packaging
- Digi-Reel®
- Part Status
- Active
- Termination
- Solder
- Housing Color
- White
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Straight, Tapered
- Contact Finish
- Tin Bismuth
- Flat Flex Type
- FFC, FPC
- Voltage Rating
- 50V
- Locking Feature
- Slide Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyphenylene Sulfide (PPS), Glass Filled
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.047" (1.20mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Number of Positions
- 5
- Current Rating (Amps)
- -
- Operating Temperature
- -20°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- 39.4µin (1.00µm)
- Material Flammability Rating
- UL94 V-0
