0541323897
| Manufacturer: | Molex |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 0541323897 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |

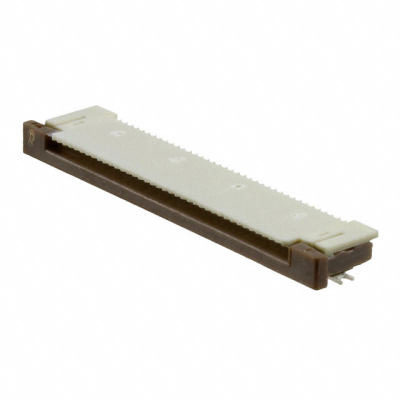

| Description: | CONN FFC BOTTOM 38POS 0.50MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- Easy-On 54132
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Packaging
- Tape & Reel (TR)
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- -
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- -
- Cable End Type
- Straight, Tapered
- Contact Finish
- Tin Bismuth
- Flat Flex Type
- FFC, FPC
- Voltage Rating
- 50V
- Locking Feature
- Slide Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyphenylene Sulfide (PPS)
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.079" (2.00mm)
- Dielectric Material
- Polyamide (PA46), Nylon 4/6
- Number of Positions
- 38
- Current Rating (Amps)
- 0.5A
- Operating Temperature
- -20°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- 39.4µin (1.00µm)
- Material Flammability Rating
- UL94 V-0
