0191150013
| Manufacturer: | Molex |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 0191150013 | ||
| Product Category: | Terminals - Spade Connectors | Reference Price (In US Dollars) | 1pcs |

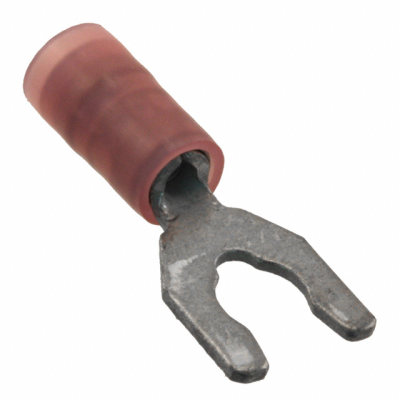

| Description: | CONN SPADE TERM 18-22AWG #8 RED | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Red
- Series
- Avikrimp
- Features
- -
- Packaging
- Cut Tape (CT)
- Insulation
- Insulated
- Wire Gauge
- 18-22 AWG
- Part Status
- Discontinued at Digi-Key
- Termination
- Crimp
- Mounting Type
- Free Hanging (In-Line)
- Stud/Tab Size
- 8 Stud
- Terminal Type
- Spring, Snap
- Contact Finish
- Tin
- Contact Material
- Copper
- Length - Overall
- 0.880" (22.35mm)
- Insulation Diameter
- 0.140" (3.56mm)
- Width - Outer Edges
- 0.310" (7.87mm)
- Length - Termination
- 0.411" (10.44mm)
- Material - Insulation
- Polyamide (PA), Nylon
- Tongue Inside Opening
- 0.139" (3.53mm)
- Length - Ring Center to Termination
- 0.261" (6.63mm)
