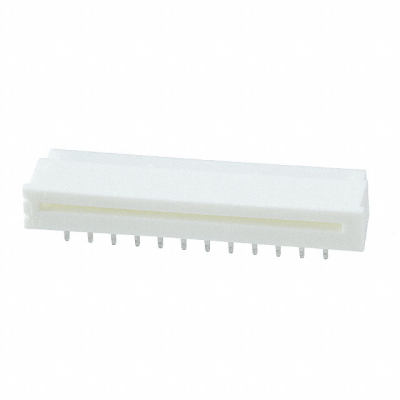

0039532244
| Manufacturer: | Molex |
In Stock 2016 pcs
|
|
|---|---|---|---|
| Datasheet: | 0039532244 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC TOP 24POS 1.25MM R/A | $2.24 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.049" (1.25mm)
- Series
- 5597
- Features
- Zero Insertion Force (ZIF)
- Packaging
- Tray
- Part Status
- Active
- Termination
- Solder
- Housing Color
- -
- Mating Cycles
- 30
- Mounting Type
- Through Hole, Right Angle
- Actuator Color
- -
- Cable End Type
- Straight
- Contact Finish
- Tin Bismuth
- Flat Flex Type
- FFC, FPC
- Voltage Rating
- 200V
- Locking Feature
- Slide Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polybutylene Terephthalate (PBT), Polyester
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.213" (5.40mm)
- Dielectric Material
- Polybutylene Terephthalate (PBT), Polyester
- Number of Positions
- 24
- Current Rating (Amps)
- 1A
- Operating Temperature
- -20°C ~ 80°C
- Connector/Contact Type
- Contacts, Top
- Contact Finish Thickness
- 39.4µin (1.00µm)
- Material Flammability Rating
- UL94 V-0
