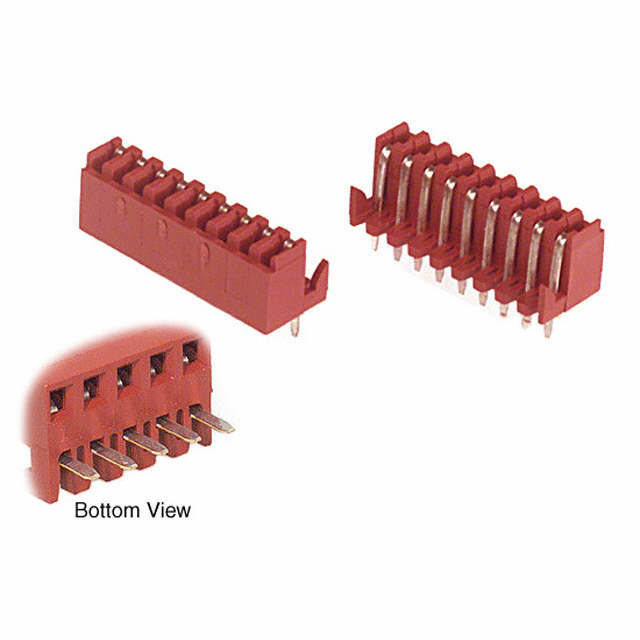

0022173092
| Manufacturer: | Molex |
In Stock 2616 pcs
|
|
|---|---|---|---|
| Datasheet: | 0022173092 | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN RCPT 9POS 0.1 GOLD PCB | $1.18 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board or Cable
- Series
- KK 4455
- Features
- Board Hooks
- Packaging
- Tray
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive, General Purpose, Medical, Telecommunications
- Contact Type
- Non-Gendered
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle, Bottom Entry
- Fastening Type
- Push-Pull
- Number of Rows
- 1
- Pitch - Mating
- 0.100" (2.54mm)
- Voltage Rating
- 250VAC
- Contact Material
- Brass
- Insulation Color
- White
- Insulation Height
- 0.311" (7.90mm)
- Ingress Protection
- -
- Insulation Material
- Polyamide (PA), Nylon
- Number of Positions
- 9
- Row Spacing - Mating
- -
- Contact Finish - Post
- Tin
- Contact Length - Post
- 0.132" (3.35mm)
- Current Rating (Amps)
- 2.5A
- Operating Temperature
- -40°C ~ 80°C
- Mated Stacking Heights
- -
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 50.0µin (1.27µm)
- Contact Finish Thickness - Mating
- 15.0µin (0.38µm)
