Lanka Micro

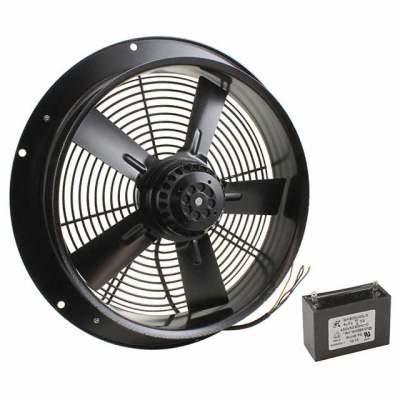

UF300BNA12-H1C2A
| Manufacturer: | Mechatronics Fan Group |
In Stock 48 pcs
|
|
|---|---|---|---|
| Datasheet: | UF300BNA12-H1C2A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 380X98MM 115VAC | $157.16 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2950 RPM
- Noise
- 78.0 dB(A)
- Width
- 98.30mm
- Series
- UF300BNA
- Weight
- 9.9 lbs (4.5 kg)
- Air Flow
- 1615.0 CFM (45.22m³/min)
- Fan Type
- Tubeaxial
- Features
- Permanent Split Capacitor Motor
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 200W
- Voltage Range
- -
- Static Pressure
- 1.100 in H2O (274.0 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Steel
- Material - Frame
- Steel
- Size / Dimension
- Round - 398mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 2.40A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
