Lanka Micro

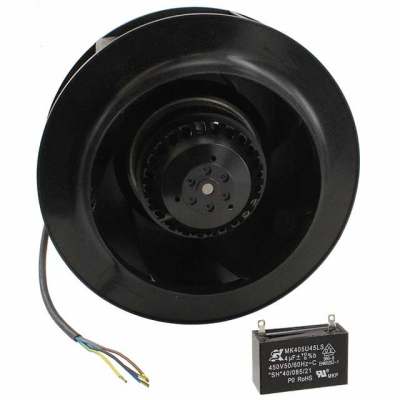

UF225(99)APA23-H1C2A
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | UF225(99)APA23-H1C2A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | IMPELLER 225X99MM 230VAC | $84.31 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2950 RPM
- Noise
- 71.0 dB(A)
- Width
- 99.00mm
- Series
- UF225(99)APA
- Weight
- 5 lbs (2.3 kg)
- Air Flow
- 770.0 CFM (21.56m³/min)
- Fan Type
- Motorized Impellers
- Features
- Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 157W
- Voltage Range
- -
- Static Pressure
- 2.600 in H2O (647.7 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Polyamide (PA), Nylon
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 225mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 0.700A
- Operating Temperature
- -40 ~ 122°F (-40 ~ 50°C)
